Stereo Imaging Tips for Producers: Master Your Mix

Stereo imaging is defined as the technique of placing sounds across the left-right and front-back dimensions of a mix to create width, depth, and spatial realism. Every professional mix relies on it. The core tools are panning, mid-side (M-S) processing, and phase manipulation. Industry standards require mono compatibility below 150Hz to prevent bass cancellation on mono playback devices. These stereo imaging tips cover the full workflow, from foundational panning laws to microphone technique, widening effects, and arrangement strategy, so you can build mixes that sound wide, focused, and professional on every playback system.

1. Stereo imaging tips: master the foundational techniques first

The first skill every producer needs is understanding the difference between true stereo panning and balance control. True stereo panning moves the image across the field while preserving both channels. Balance control simply reduces the volume of one side, which creates a lopsided image and loses stereo information. Many DAW pan knobs default to balance mode, so check your pan law settings before you start mixing.

Mid-side (M-S) processing is the most surgical tool for controlling width. The mid signal carries everything in the center of your mix, including vocals, kick, and bass. The side signal carries everything that differs between left and right. Boosting the sides independently adds width without touching the center image, which keeps your vocal clear while pads and reverbs spread out.

Phase relationships determine whether your mix survives mono playback. Two signals that are out of phase cancel each other when summed. A correlation meter reads from +1.0 (perfectly mono compatible) to -1.0 (complete cancellation). Keep the final mix above +0.3 to avoid audible phase problems on phones, laptops, and club PA systems.

• True stereo pan vs. balance: always use true pan for stereo tracks
• M-S processing: boost sides for width, cut sides for focus
• Correlation meter: target above +0.4 during widening, above +0.3 at final mix
• Low-frequency mono anchor: keep everything below 100–150Hz in mono

Pro Tip: Flip your mix to mono before you commit to any panning decision. If an element disappears or sounds thin, you have a phase problem that needs fixing before you move on.

2. How professional mic techniques enhance stereo recording

The microphone technique you choose at the recording stage shapes your stereo image before any plugin touches it. Coincident techniques like X/Y and Blumlein use two capsules placed nearly touching, angled between 90 and 110 degrees. X/Y is the safest stereo method for beginners and rooms with uncertain acoustics because its tight capsule spacing produces almost no phase issues when folded to mono.

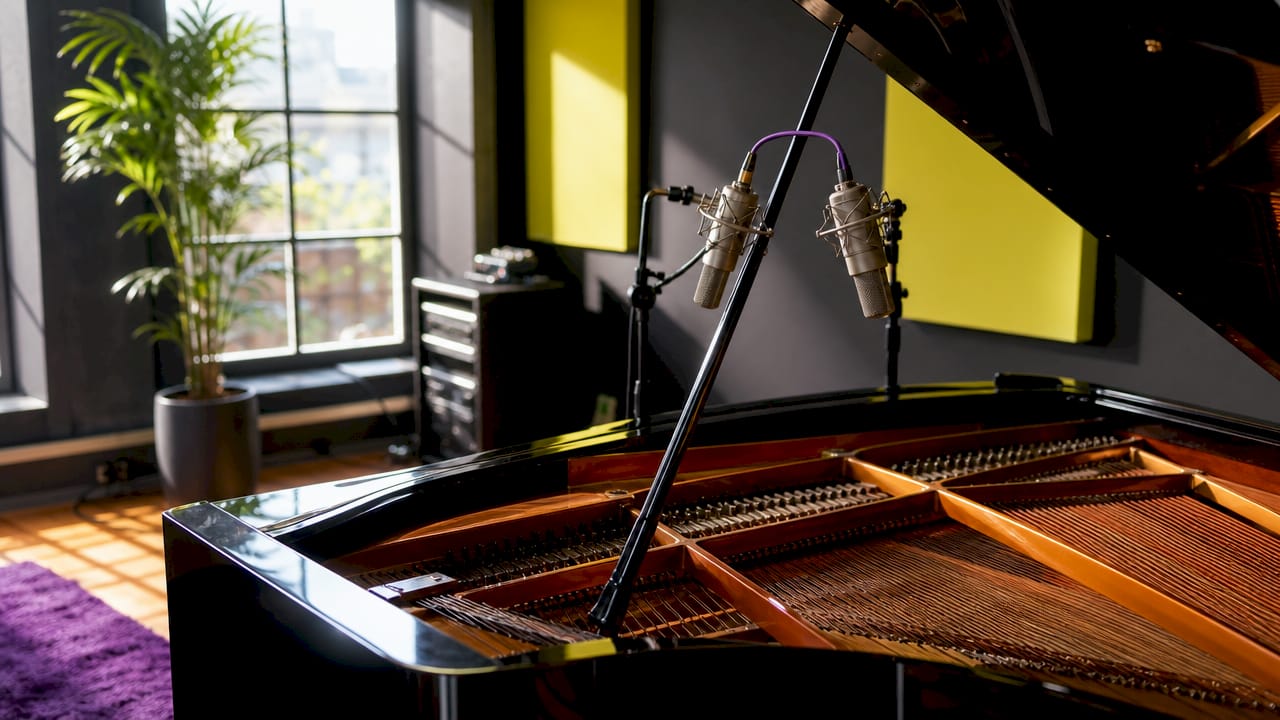

ORTF is the go-to technique for natural, realistic stereo width. It uses two cardioid microphones spaced 17cm apart at a 110-degree angle, which approximates the distance between human ears. That spacing creates interaural timing differences that feel natural to listeners. ORTF delivers wider imaging than X/Y while maintaining solid mono compatibility, making it the best all-around choice for acoustic instruments, drum overheads, and room mics.

Spaced pair techniques, where mics are placed several feet apart, produce the widest stereo image of all. The trade-off is significant phase risk when the mix is summed to mono. Room acoustics also play a major role. A live room with natural reverb enhances spaced pair recordings, while a dead room makes them sound thin and disconnected.

Technique	Width	Mono Compatibility	Best Use
X/Y	Narrow	Excellent	Uncertain acoustics, beginners
ORTF	Natural/Wide	Good	Acoustic instruments, overheads
Spaced pair	Very wide	Poor	Live rooms, ambient recording
Blumlein	Wide	Very good	Figure-8 mics, room capture

Pro Tip: Always check level matching between left and right mic channels before recording. Even a 0.5dB difference shifts the stereo image off-center and creates a lopsided soundstage that no plugin can fully correct.

3. Using stereo widening effects without wrecking your mix

Stereo widening plugins are powerful, but they carry real risks. The Haas effect is one of the most common widening methods. It delays one channel by 10–25ms to create perceived width, but that delay causes destructive comb filtering and phase cancellation when the mix is summed to mono. The result is a wide stereo image that collapses and sounds hollow on a phone speaker.

Stereo perception works differently at different frequencies. Timing differences (ITD) dominate below 1,500Hz, while level differences (ILD) dominate above 1,500Hz. This means a single widening algorithm applied across the full frequency range will always sound unnatural. Frequency-dependent widening, where low frequencies stay mono and high frequencies spread wide, produces a more natural and stable image.

The safest approach to widening uses M-S EQ rather than delay-based widening. Boost the high-frequency “air” band (above 8kHz) on the side channel only. This adds shimmer and dimension without touching the center image or creating phase problems. For instruments like synth pads and acoustic guitars, a gentle side boost between 2kHz and 10kHz opens up the mix without pushing anything out of phase.

• Avoid Haas delay on critical tracks: use decorrelation or pitch modulation instead
• Apply frequency-dependent widening: mono below 100–150Hz, wide above 1,500Hz
• M-S EQ for air: boost sides above 8kHz for dimension without center loss
• Maintain contrast: not every element needs to be wide; narrow elements make wide ones sound wider

4. How to check and maintain mono compatibility

Mono compatibility is not optional. Phones, smart speakers, and many club PA systems play audio in mono. A mix that sounds wide and impressive in stereo can lose instruments, thin out, or sound completely different when folded to mono. The correlation meter is your primary diagnostic tool: readings near +1.0 mean highly mono-compatible content, while readings near zero indicate wide but potentially unstable stereo.

1. Check mono early. Fold your mix to mono at the start of every session, not just at the end. Catching phase issues early saves hours of rework.
2. Use three listening positions. Listen in stereo on speakers, then fold to mono, then switch to headphones at low volume. Each position reveals different problems.
3. Watch the correlation meter during widening. If the reading drops below +0.4 while a stereo widener is active, pull back the effect or narrow the side signal.
4. Identify cancellation by soloing elements. Solo each stereo track and flip it to mono. Any element that loses significant volume or changes character has a phase issue.
5. Fix phase problems at the source. Narrow the side signal using M-S processing, reinforce the mid channel, or use a phase alignment plugin on the affected track. Widening the sides further will not fix a phase problem.

The low-frequency mono anchor is the single most important mono compatibility fix. Apply a high-pass filter to the side channel at 100–150Hz on any global stereo widener. This keeps kick, bass, and sub frequencies locked in mono, which prevents the bass from disappearing when the mix is summed.

5. Arrangement and mix decisions that maximize stereo space

A strong stereo image starts with a strong mono core. Kick, snare, bass, and lead vocal belong in the center of the mix. These elements carry the energy and identity of the song. Placing primary elements center and sides for ambience prevents masking and keeps the mix organized. When the center is solid, the sides have room to breathe.

Side channels are where the mix comes alive. Pads, reverb returns, room mics, chorus effects, and background harmonies all work well in the side channels. These elements add width and depth without competing with the center. M-S EQ can boost high-frequency air on the sides while keeping the mid channel clear, which creates a sense of space without muddying the center.

Contrast is the real secret to a wide-sounding mix. The deliberate contrast between narrow center elements and wider sides is the key difference between amateur and commercial mixes. A pad that fills the full stereo field sounds wider when the kick and bass are locked in mono next to it. Without that contrast, everything sounds equally wide, which means nothing sounds wide at all.

• Center: kick, snare, bass, lead vocal, lead synth
• Sides: pads, reverb returns, room mics, background vocals, chorus layers
• Avoid constant movement: treat stereo effects as event highlights, not defaults for every element
• Genre awareness: dense electronic mixes favor wider sides; acoustic and jazz mixes favor narrower, more natural imaging

Key takeaways

The most effective stereo imaging approach combines a locked mono core below 150Hz, frequency-dependent widening above 1,500Hz, and deliberate contrast between center and side elements to produce mixes that translate on every playback system.

Point	Details
Mono anchor is non-negotiable	Keep all frequencies below 100–150Hz in mono to prevent bass cancellation.
True pan beats balance	Use true stereo panning, not balance control, to preserve image stability.
Contrast creates width	Narrow center elements make wide side elements sound dramatically wider.
Correlation meter guides widening	Keep the final mix correlation above +0.3 to survive mono playback.
ORTF is the all-around mic choice	Its 17cm spacing and 110-degree angle deliver natural width with solid mono compatibility.

The contrast principle changes everything

Most producers I talk to think stereo imaging is about making things wider. That instinct leads directly to over-widened mixes that collapse in mono and cause ear fatigue within minutes. The real skill is contrast, not width.

The producers whose mixes genuinely sound three-dimensional are not the ones using the most widening plugins. They are the ones who keep the kick, bass, and lead vocal locked tight in the center and then let the sides breathe with reverb, pads, and ambience. That contrast is what makes the wide elements feel wide. Without a narrow center to push against, a wide side channel just sounds like a mess.

I also think the industry is underestimating how much the rise of immersive audio formats like Dolby Atmos is changing the conversation. Spatial mixes built for Atmos require stems and object-based placement, not upmixed stereo tracks. If you are building stereo mixes today, the habits you build around mono compatibility and frequency-dependent widening will translate directly into better Atmos work later.

Start treating stereo imaging as a structural decision, not a finishing touch. Build your mono core first. Assign your side elements intentionally. Check mono at every stage. The technical rigor and the creative result are not in conflict. They reinforce each other.

— Wake

Soundbridge and your stereo imaging workflow

Putting these techniques into practice requires a DAW that gives you full control over your stereo field at every stage of production. Soundbridge is built for exactly that kind of detailed, high-fidelity work.

Soundbridge supports high-resolution audio processing at up to 192kHz sample rates, which gives you the headroom to work with M-S processing, phase alignment, and frequency-dependent widening without degrading your signal. The platform runs on both Mac and Windows, with free and paid tiers, so you can start applying these audio mixing techniques right away. Whether you are tracking in a home studio or collaborating remotely, Soundbridge keeps your stereo workflow tight and your monitoring accurate.

FAQ

What is stereo imaging in music production?

Stereo imaging is the technique of placing sounds across the left-right and depth dimensions of a mix to create width, space, and realism. It uses panning, M-S processing, and phase management to build a three-dimensional soundstage.

How do I improve mono compatibility in my mix?

Keep all frequencies below 100–150Hz in mono, monitor your correlation meter above +0.3, and check your mix in mono at multiple points during the session. Fixing phase issues early prevents problems at the mastering stage.

What is the ORTF microphone technique?

ORTF uses two cardioid microphones spaced 17cm apart at a 110-degree angle to capture natural stereo width that approximates human hearing. It delivers wider imaging than X/Y while maintaining good mono compatibility.

Is the Haas effect safe to use for stereo widening?

The Haas effect creates width by delaying one channel by 10–25ms, but it causes comb filtering and phase cancellation when summed to mono. Decorrelation or frequency-dependent M-S processing is a safer alternative for critical tracks.

What correlation meter reading should I target for a final mix?

A correlation meter reading above +0.3 at the final mix stage indicates acceptable mono compatibility. Readings near +1.0 are highly mono compatible, while readings near zero signal potential phase cancellation on mono playback devices.
